Targets
There are 2 types of targets – paper and steel. The difference between them is that the builder assumes that you fire a paper target twice and steel once. It’s needed to calculate the total number of shots for PDF export and to play the simulation.
To place the target, select it from the instrument panel on the left and click on the spot on the grid where you want to place it. To rotate the target, select it, then drag the rotation button. You can also change the height of the target. Select it and drag the button with up and down arrows.
To create a penalty target, duplicate the target you placed, select it and press the “Toggle penalty” button. Then move the penalty target to the desired position.
Barriers

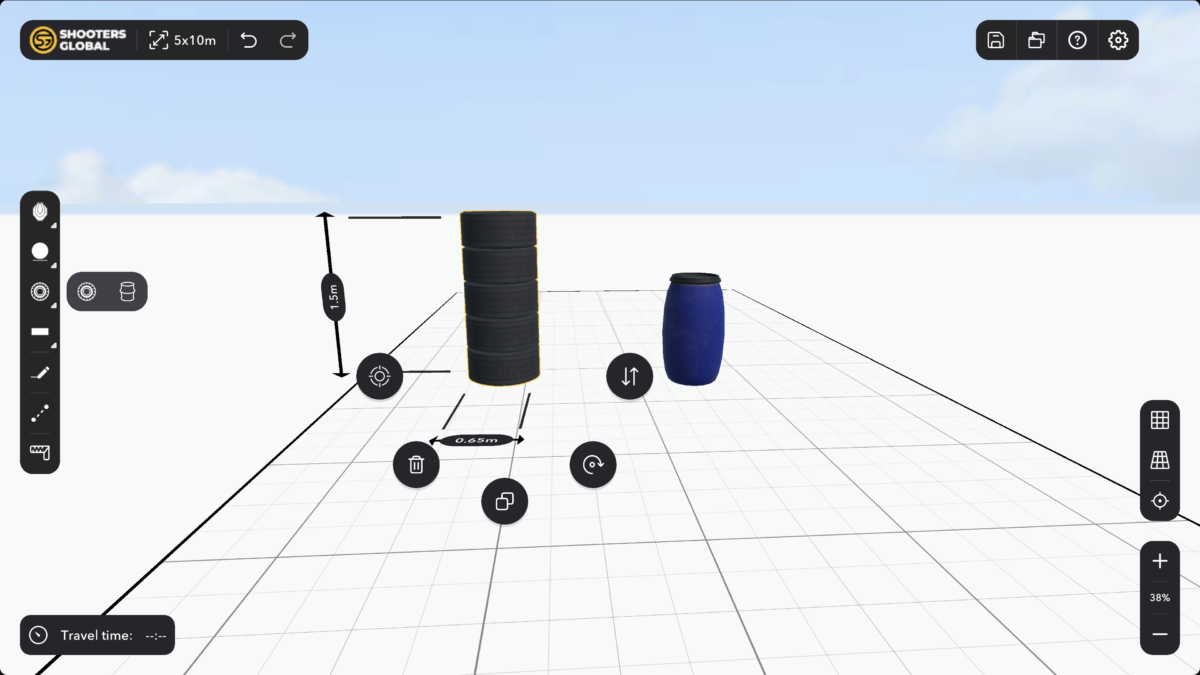

Tires and barrels can be placed anywhere on the stage as all other props.
The height of the tires can be changed, same way as the targets or walls.
Walls
There are breastworks, mesh walls and solid walls.
To build a wall, select it from the instrument panel on the left, then click on the spot on the grid where you want the wall to start. You will see the projection of the wall as you move the cursor. Click the spot on the spot where you want the wall section to end. This spot will automatically also become the start point of the next wall section. On a tablet you can also drag the finger across the screen to see the path of the wall section. To exit the building mode or to build another wall, press “Escape” or right click. On a tablet you need to press the X button in the middle up top.
Wall shape can be edited after building. Select the wall section, click and hold the left button and drag. The adjacent wall sections will adjust their shape automatically.
The height of the wall sections can be adjusted. Select the section, then press and drag the button with up and down arrows. The ruler will show the height and length of the wall.
You can make holes in walls to shoot through. Select the section and then the hole shape from a dropdown. To adjust the placement of the hole, select it and drag across the wall. To change its dimensions, select it and drag buttons with arrows.
